Simple Hydraulic Car Stack Parking Lift 4 Floors Storage Car Parking System for parking 12 cars

Storage Type Car Parking Lift 3 Car Loading Boards for 4 Cars

Introduction

• XSP series is very popular valet parking equipment in the current.Wide range of use, XSP series can be applied to enterprises, office buildings, residential property, hotels, families and other places.
• Symmetrical designed column can be shared by two units to save precious space for your car.
• Hydraulic and steel rope driving,low noise, smooth operation,stable and energy saving,low carbon environmental protection.
• The surface spray,beautiful color, environment friendly, strong anti-corrosion ability, durable.
• Reasonable process, lean manufacturing,simple structure,compact. Installation is simple, no welding and cutting,low requirements for civil engineering.
• The series has two forms, 2 layers 3 car parking spaces and 3 layers 4 car parking places, can be customized according to the requirements.Maximum lifting capacity is 2500 kg,
• XSP can be used for parking SUV and conventional cars.

Features

• The platforms can be overlapped, the column can be shared upon the parking space, more economical and safer
• With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space.
• Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform
• Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently
• With two stages lock system, automatic lock for every platform, which prevents the upper platform colliding the car below.
• One unlock handle to release every platform
• The cylinders have the inverse draw type device, which protects the cylinders, safer and more reliable
• Mold machining through the whole process so that the parts are universal and interchangeable.
• Pass 120% capacity dynamic load test and 150% capacity static load test.
• Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop.
• Optional ultrared rays alarm device, in case of unguarded entrance.

Technical Drawings

Technical Parameters

More Models for Option

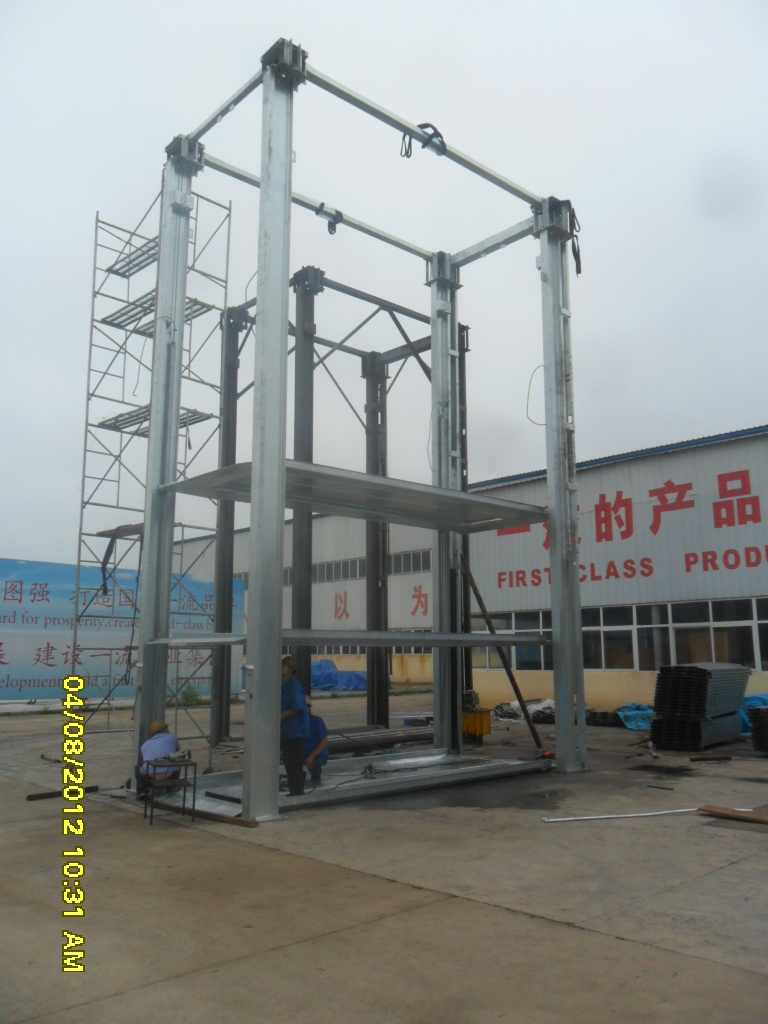

Simple Hydraulic Car Stack Parking Lift 4 Floors Storage Car Parking System for parking 12 cars Images
